Apadana Rock Wool Company

Manufacturer of all kinds of sound and thermal insulation from basalt stone

ROCK WOOL AND INSULATION PRODUCTION IN ISFAHAN

what is rock wool ?

Basalt is a family of igneous rocks formed by volcanic eruptions. If this rock is subjected to high temperatures (about 1500 degrees Celsius) in industry and deformed, it eventually produces a type of fiber. The resulting fibers have fireproof properties and are used in the preparation of thermal and acoustic insulation; this type of insulation is called rock wool. Basically, basalt is melted at high temperatures and converted into fibers with micron dimensions. Then, a mixture consisting of 97 percent basalt fibers and 3 percent resin and special oils will lead to the production of rock wool. Rock wool is considered an excellent thermal insulator and at the same time an excellent sound insulator, which will be very useful for reducing energy consumption and reducing noise pollution in buildings. Therefore, using this insulation in the construction of civil and building structures will practically reduce energy-related costs.

ROCK WOOL AND INSULATION PRODUCTION IN ISFAHAN

Production of rock wool and insulation

fenofelt

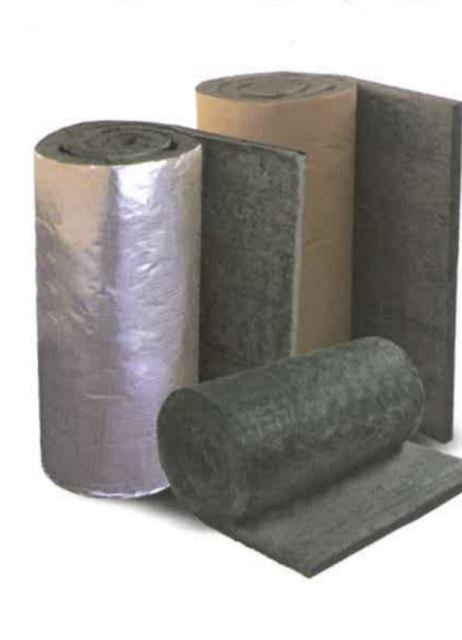

Phenofelt or quilted rock wool is an excellent and uniform thermal resistant insulation made of rock wool fibers with thermosetting resins, lightweight, strong and flexible. Rock wool insulation is uncoated, one side is reinforced with aluminum or a paper model of rock wool with kraft paper. Production method: The production method of Phenofelt is very similar to the production of Phenopanel, that is, in fact, the production method is the same, with the difference that in this product, due to its low density, less wool is used than in board insulation, and much less resin is also used. Features of Phenoflet quilted rock wool High sound absorption Corrosion resistant Stable physical and chemical properties Prevents the spread of fire Asbestos-free Easy transportation and installation Excellent thermal and acoustic insulation properties Resistant to fire and flame propagation Very good flexibility and light weight Corrosion resistant Resistant to chemical and biological contamination Impact resistant Easy and quick installation Very simple transportation and maintenance Very reasonable and affordable cost

ROCK WOOL AND INSULATION PRODUCTION IN ISFAHAN

isopipe

Isoblank is a flexible, non-combustible, water and moisture resistant insulation that acts as an excellent thermal and acoustic insulator. As a result, energy consumption is saved by using this insulation. Isoblank or rock wool is a blanket made from natural stone and recycled products, heated to create a molten mixture, and then spun into fine wool. This insulation material is resistant to temperatures up to 1093 degrees Celsius and is used in various applications. This insulation is more expensive than glass wool fibers, but its special properties make it unique in its kind.

ROCK WOOL AND INSULATION PRODUCTION IN ISFAHAN

isotherm

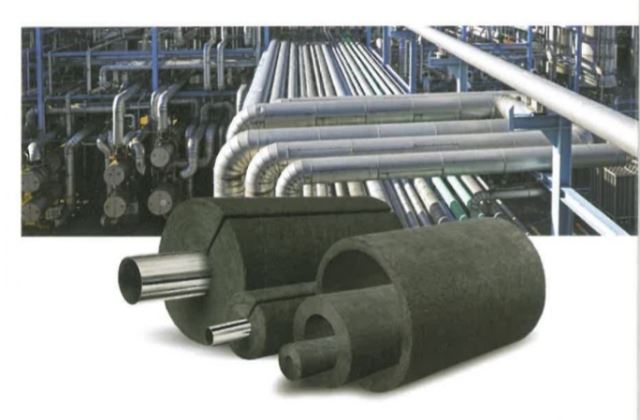

Pipe slag wool (Isopipe) is used to insulate pipes in which cold or hot fluids or steam flow. Pipe slag wool thermal insulation is also used in heating, refrigeration and air conditioning systems and is usually supplied with a kraft paper coating or an aluminum coating. Coated and uncoated types, as well as slotted and non-slotted types of this pipe insulation are produced according to customer taste. The features of this product include high temperature resistance, strong corrosion resistance, good thermal conductivity, good dimensional stability, anti-compression capability and insulation to reduce energy consumption and protect human resources in industrial environments. The maximum effective resistance of pipe slag wool insulation is up to 350 degrees Celsius. Pipe slag wool, rock wool boards and rock wool blankets are all major building material products.

ROCK WOOL AND INSULATION PRODUCTION IN ISFAHAN

Isotherm

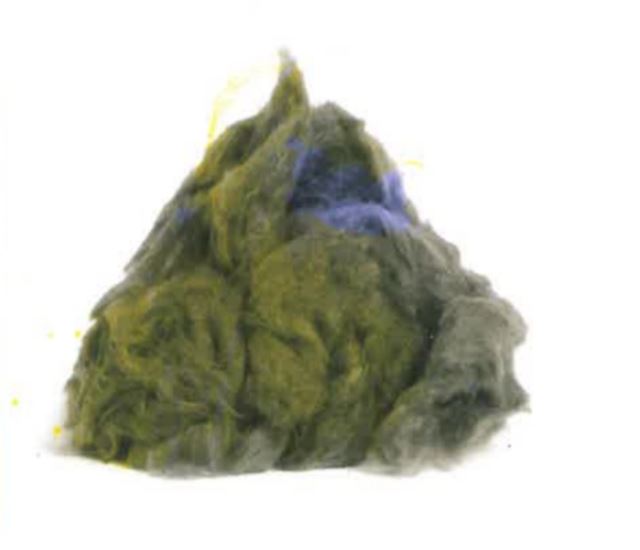

. posham sang kham feleh i , ayegh bedon avamel peyvandi est ve basort feleh i basteh bandi shodeh ve ayegh hararti ve soti mi bashod. posham sang kham feleh i dar ayeghekari bin do jedareh sakhtaman, jedar dodkeshesa, egzozemaye sanati ve par kardan fazanpehei faghad shekl npandesi monazam karbard dard. az in mahsul halaji shodeh dar dar posham sang dar tolid lent tarmaz ve safheh kolaj, batan cpehei sabak, isogam cpehei rotubati, divar yakhchal ve tanorehaye nanavayi estefadeh mi shod. mahdudeh damaye karbardi mosar izotram motejavz az 7̱5̱0̱ darjeh santigarad mi bashod ve naghteh zob an dar hadud 1̱3̱0̱0̱ darjeh santigarad mi bashod. ۵۰۶ / ۵٬۰۰۰ Bulk raw rock wool is an insulation without bonding agents and is packed in bulk and is a thermal and acoustic insulator. Bulk raw rock wool is used in insulation between two building walls, chimney walls, industrial exhausts and filling spaces without regular geometric shapes. This product, rolled into rock wool, is used in the production of brake pads and clutch plates, lightweight concrete, moisture insulation, refrigerator walls and bakery ovens. The effective operating temperature range of the isotherm exceeds 750 degrees Celsius and its melting point is about 1300 degrees Celsius.

ROCK WOOL AND INSULATION PRODUCTION IN ISFAHAN

phenopanel

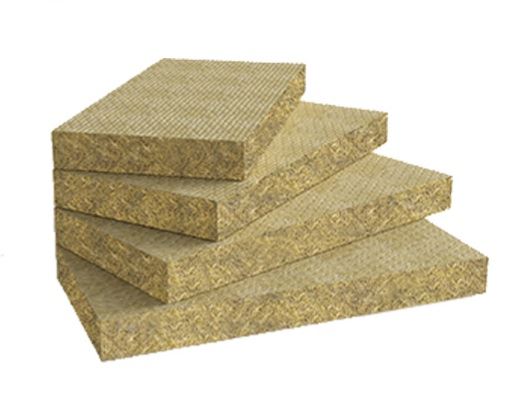

Phenopanel or rock wool board is pressed and baked in a curing oven and becomes semi-hard and hard boards. Phenopanel insulation is designed for high-temperature, acoustic and fireproof applications. Production method: After melting the basalt rock in the oven and exiting it, the melt is immediately fed into the fiber-making machine with the help of very powerful blowers. At the same time, a special resin with special compounds, mainly phenolic resin and water, is added to the spraying melts. At the end of the fiber-making machine, we see rock wool fibers that are smaller. This is called resin-coated rock wool. Adding resin to rock wool fibers causes adhesion between the fibers and actually makes molding easier. After this stage, the resin-coated rock wool is fed into the baking machine according to the customer's order, with the desired density and thickness determined. For example, if we want to produce 50 mm thick rock wool with a density of 80 kg/m3, 4 kg of raw resin wool is required for each square meter. Since resin wool contains water and loses its water after entering the cooking machine, usually 10% more than the calculated weight of wool is added. For example, to produce 1 square meter of 50 mm thick rock wool, 4.4 kilograms of wool are considered.
